Toyota Tundra Service Manual: Removal

REMOVAL

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (See page ).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH (for Front Side)

4. REMOVE FRONT UPPER ARMREST BASE PANEL LH (for Front Side)

5. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH (for Front Side)

6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Front Side)

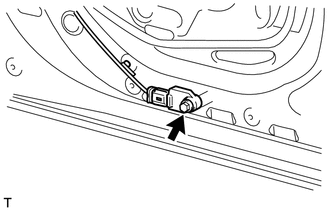

7. REMOVE FRONT SIDE AIRBAG SENSOR

(a) Disconnect the connector.

(b) Remove the screw and side airbag sensor.

8. REMOVE REAR SEAT ASSEMBLY (for Rear Side)

(a) Remove the rear seat (see page ).

9. REMOVE REAR DOOR SCUFF PLATE LH (for Rear Side)

10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (for Rear Side)

11. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY LH (for Rear Side)

12. REMOVE REAR SIDE AIRBAG SENSOR

(a) Remove the bolt and side airbag sensor.

(b) Disconnect the connector.
