REMOVAL

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (See page ).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

4. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

7. REMOVE NAVIGATION RECEIVER ASSEMBLY

(a) Remove the 4 bolts.

(b) Pull the navigation receiver assembly with bracket to detach the 3 clips and 2 guides on the backside of the navigation receiver assembly with bracket.

(c) Disconnect each connector and remove the navigation receiver assembly with bracket.

8. REMOVE NO. 1 NAVIGATION WIRE (w/ Satellite Radio)

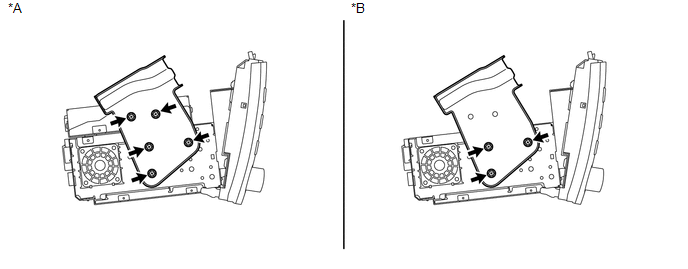

9. REMOVE NO. 1 RADIO RECEIVER BRACKET

Text in Illustration

*A

w/ Satellite Radio

*B

w/o Satellite Radio

(a) w/ Satellite Radio:

Remove the 5 bolts and No. 1 radio receiver bracket.

(b) w/o Satellite Radio:

Remove the 3 bolts and No. 1 radio receiver bracket.

10. REMOVE NO. 2 RADIO RECEIVER BRACKET

Text in Illustration

*A

w/ Satellite Radio

*B

w/o Satellite Radio

(a) w/ Satellite Radio:

Remove the 5 bolts and No. 2 radio receiver bracket.

(b) w/o Satellite Radio:

Remove the 3 bolts and No. 2 radio receiver bracket.

11. REMOVE STEREO COMPONENT TUNER ASSEMBLY (w/ Satellite Radio)
