Toyota Tundra Service Manual: Gain Rocker Switch (+) Circuit (C14A1,C14A2)

Toyota Tundra Service Manual / Brake / Brake Control / Dynamic Control Systems / Trailer Brake Control System / Gain Rocker Switch (+) Circuit (C14A1,C14A2)

DESCRIPTION

DTC No.	Detection Item	INF Code	DTC Detection Condition	Trouble Area
C14A1	Gain Rocker Switch (+) Circuit	21	With the ignition switch turned to ON and the IG terminal voltage from 11 to 14 V, an open circuit occurs continuously in the GAIN (+) selection button internal circuit or wire harness and connector stuck ON for 60 seconds or more	Trailer brake control switch Trailer brake control ECU (Brake control with bracket relay) Harness or connector
C14A2	Gain Rocker Switch (-) Circuit	31	With the ignition switch turned to ON and the IG terminal voltage from 11 to 14 V, an open circuit occurs continuously in the GAIN (-) selection button internal circuit or wire harness and connector stuck ON for 60 seconds or more	Trailer brake control switch Trailer brake control ECU (Brake control with bracket relay) Harness or connector

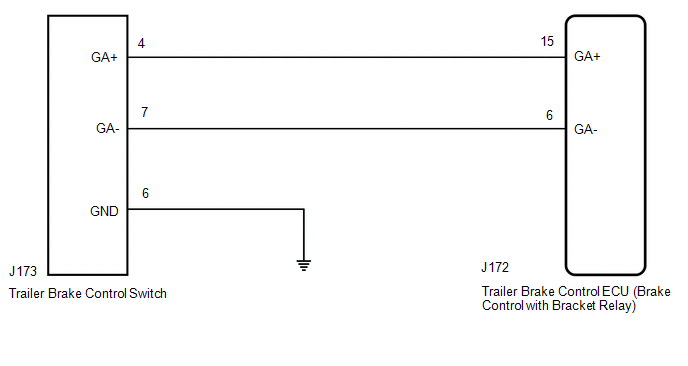

WIRING DIAGRAM

PROCEDURE

1.	INSPECT TRAILER BRAKE CONTROL SWITCH

(a) Turn the ignition switch off.

(b) Remove the trailer brake control switch.

Click here

OK:

The trailer brake control switch operates normally.

REPLACE TRAILER BRAKE CONTROL SWITCH

2.	CHECK HARNESS AND CONNECTOR (BRAKE CONTROL WITH BRACKET RELAY - TRAILER BRAKE CONTROL SWITCH)

(a) Disconnect the J172 trailer brake control ECU (brake control with bracket relay) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
J172-6 (GA-) - J173-7 (GA-)	Always	Below 1 Ω
J172-6 (GA-) or J173-7 (GA-) - Body ground	Always	10 kΩ or higher
J172-15 (GA+) - J173-4 (GA+)	Always	Below 1 Ω
J172-15 (GA+) or J173-4 (GA+) - Body ground	Always	10 kΩ or higher
J173-6 (GND) - Body ground	Always	Below 1 Ω

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.	TRAILER BRAKE PROBLEM CHECK

(a) Check the GAIN (+/-) selection button (trailer brake control switch) operation condition.

OK:

he GAIN (+/-) selection button (trailer brake control switch) has not been pushed and held for 1 minute or more.

END

REPLACE BRAKE CONTROL WITH BRACKET RELAY

Slider Switch Circuit (C14A0)

Output Circuit Temperature High / Over Current (C14A4,C14A6,C14AA)

See More:

Toyota Tundra Service Manual > Engine Immobiliser System (w/o Smart Key System): Diagnosis System
