Toyota Tundra Service Manual: Fuel Tank Cap

Inspection

INSPECTION

PROCEDURE

1. INSPECT FUEL TANK CAP ASSEMBLY

(a) Visually check if the cap and/or gasket are deformed or damaged.

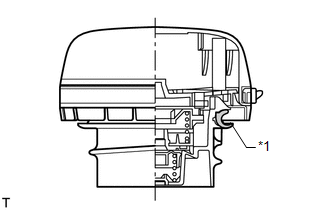

Text in Illustration

*1

Gasket

If the result is not as specified, replace the fuel tank cap assembly or gasket.

NOTICE:

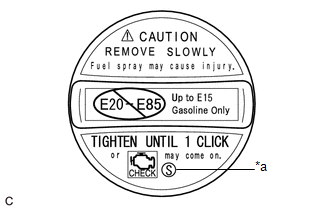

Confirm that ID mark S is printed on the replacement fuel tank cap.

Text in Illustration

*a

ID Mark
