Toyota Tundra Service Manual: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY

(a) Apply high temperature grease to the areas of the starter pinion drive lever indicated in the illustration.

(b) Install the starter pinion drive lever and rubber seal to the starter center bearing clutch.

(c) Install the starter center bearing clutch together with the starter pinion drive lever and rubber seal into the starter drive housing.

2. INSTALL PLANETARY GEAR

(a) Apply high temperature grease to the planetary gears and pins of the starter center bearing clutch.

(b) Install the 3 planetary gears.

3. INSTALL STARTER ARMATURE ASSEMBLY

(a) Install the starter armature to the starter yoke.

NOTICE:

The magnet of the starter yoke may attract the starter armature when the starter commutator end frame is installed causing the magnet to break.

4. INSTALL STARTER BRUSH HOLDER ASSEMBLY

(a) Push out the 4 brushes from the brush holder so that they are held in place by the springs, as shown in the illustration.

(b) Install the brush holder to the starter armature and push in the 4 brushes.

(c) Insert grommet between the positive (+) side and negative side.

5. INSTALL STARTER COMMUTATOR END FRAME ASSEMBLY

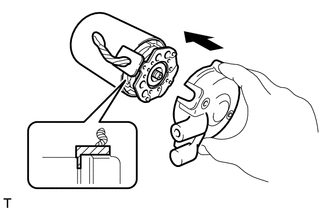

(a) Fit the clamp of the brush holder into the starter commutator end frame.

(b) Install the commutator end frame with the 2 screws.

Torque:

1.5 N·m {15 kgf·cm, 13 in·lbf}

6. INSTALL STARTER ARMATURE PLATE

(a) Install the starter armature plate to the starter yoke.

NOTICE:

Install the starter plate so that the keyway is positioned between key-A and key-B.

7. INSTALL STARTER YOKE ASSEMBLY

(a) Align the key of the starter yoke with the keyway located on the starter drive housing.

(b) Using a T25 "TORX" socket wrench, install the 2 bolts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

8. INSTALL MAGNET STARTER SWITCH ASSEMBLY

(a) Apply high temperature grease to the plunger hook.

(b) Hang the plunger of the magnet starter switch onto the drive lever from the upper side.

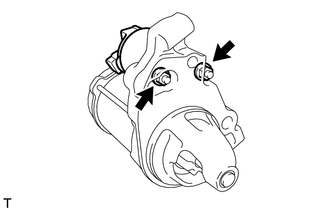

(c) Install the magnet starter switch with the 2 nuts.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

(d) Connect the lead wire to the magnet starter switch and connect it with the nut.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}
