Toyota Tundra Service Manual: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL REAR SPRING LEAF BUSH

(a) Install a new bush to the leaf spring.

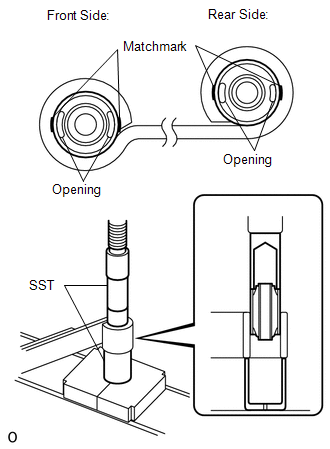

(1) Install the bushing while aligning it with the matchmarks so that its openings are as shown in the illustration.

NOTICE:

Be sure to install each bushing to the correct positions.

(b) Use SST and a press, press both bushes into the leaf spring.

SST: 09710-28012

09710-07062

SST: 09710-30041

09710-03211

NOTICE:

Align SST, which presses the bush, to the outer casing of the bush.

    Installation

    Removal
