Toyota Tundra Service Manual: Components

Toyota Tundra Service Manual / Vehicle Interior / Mirror / Inner Rear View Mirror / Components

COMPONENTS

ILLUSTRATION

*A

w/ EC Mirror

-

-

*1

INNER REAR VIEW MIRROR ASSEMBLY

*2

INNER REAR VIEW MIRROR STAY HOLDER COVER

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

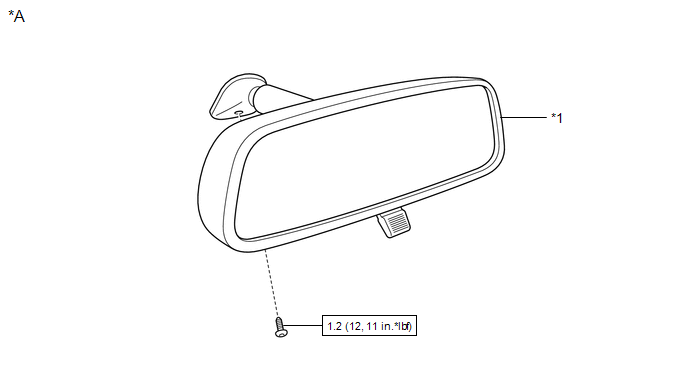

ILLUSTRATION

*A

w/o EC Mirror

-

-

*1

INNER REAR VIEW MIRROR ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
    Calibration

    Inspection
