Toyota Tundra Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

1. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

(a) Attach the guide to install the rear center seat outer belt assembly with the nut.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

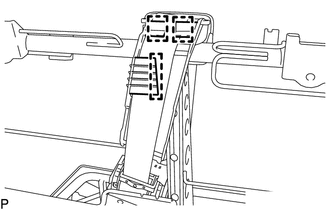

(b) Attach the 3 guides to install the rear center seat outer belt assembly to the rear seat shoulder belt hole cover.

2. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

3. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY

4. INSTALL REAR SEAT HEADREST SUPPORT

5. INSTALL TETHER ANCHOR BRACKET SUB-ASSEMBLY

6. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY

7. INSTALL REAR SEAT INNER RECLINING COVER LH

8. INSTALL REAR SEAT RECLINING COVER LH

9. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

10. INSTALL REAR SEATBACK LOCK CONTROL BEZEL

11. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

12. INSTALL REAR SEAT HEADREST ASSEMBLY

13. INSTALL REAR SEAT ASSEMBLY LH

14. INSTALL REAR SEAT INNER BELT ASSEMBLY

15. INSTALL REAR SEAT ASSEMBLY RH
