Toyota Tundra Service Manual: Rear Seat Outer Belt Assembly(for Crewmax)

Toyota Tundra Service Manual / Vehicle Interior / Seat Belt / Rear Seat Outer Belt Assembly(for Crewmax)

Components

COMPONENTS

ILLUSTRATION

Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR SEAT OUTER BELT ASSEMBLY

(a) Check the ELR.

(1) When the inclination of the retractor is 15° or less from its installed position, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45° from its installed position, check that the belt locks.

If the operation is not as specified, replace the seat belt assembly.

(b) Check the fastening function of the child restraint system.

NOTICE:

The check should be performed with the outer belt installed.

(1) When the belt is pulled out fully, the belt should automatically start to retract.

(2) After the belt has fully retracted, the belt should be able to be pulled out and retracted again.

If the operation is not as specified, replace the belt assembly.

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedures for the LH side and RH side.
  • The procedures listed below are for the LH side.

PROCEDURE

1. REMOVE REAR SEAT ASSEMBLY

(See page )

2. REMOVE REAR DOOR SCUFF PLATE LH

3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

(a) Partially remove the rear door opening trim weatherstrip so that the lower quarter trim panel assembly LH and front quarter trim panel assembly LH can be removed (See page ).

4. REMOVE NO. 1 BOX SPEAKER ASSEMBLY (w/ Woofer)

5. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY LH

(a) Detach the 2 claws and remove the cover.

(b) Remove the bolt and disconnect the rear seat outer belt assembly.

(c) Detach the 5 clips and remove the lower quarter trim panel assembly LH.

6. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

7. REMOVE REAR SEAT OUTER BELT ASSEMBLY

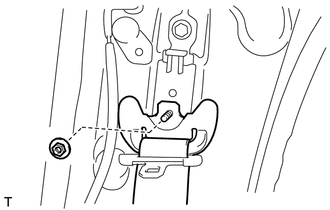

(a) Remove the nut and disconnect the rear seat outer belt assembly.

(b) Remove the 2 bolts and rear seat outer belt assembly.

8. REMOVE REAR SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

(a) Remove the 2 bolts and rear shoulder belt anchor adjuster assembly.
