Toyota Tundra Service Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL CENTER FRONT SEAT ASSEMBLY

(a) Install the center front seat assembly.

NOTICE:

Be careful not to damage the vehicle body.

(b) Connect the connector and install the 4 bolts.

Torque:

37 N·m {377 kgf·cm, 27 ft·lbf}

(c) Install the center seat cushion carpet.

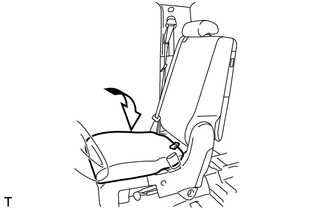

(d) Close the center front seat cushion sub-assembly.

2. INSTALL FRONT SEAT ASSEMBLY LH

(a) for Power Seat:

(see page )

(b) for Manual Seat:

(see page )

3. INSTALL FRONT SEAT ASSEMBLY RH

HINT:

Use the same procedure as for the driver seat.

(a) for Power Seat:

(See page )

(b) for Manual Seat:

(See page )
