Toyota Tundra Service Manual: Removal

REMOVAL

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read precaution thoroughly before servicing.

Click here

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

4. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY

Click here

5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

6. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

Click here

7. REMOVE CONSOLE BOX CARPET

Click here

8. REMOVE REAR CONSOLE BOX ASSEMBLY

Click here

9. REMOVE FRONT CONSOLE BOX

Click here

10. REMOVE AIRBAG SENSOR ASSEMBLY

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Use the same procedure for the other airbag connectors.

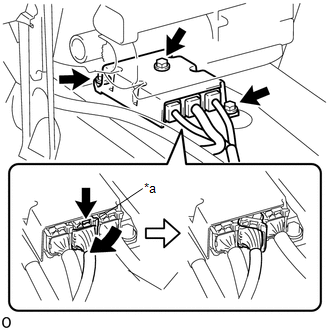

(1) Push and pull the lock lever to release the connector lock as shown in the illustration.

Text in Illustration

*a

Lock Lever

(2) Disconnect the airbag connector.

(d) Remove the 3 bolts and airbag sensor assembly.

NOTICE:

If the airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the airbag sensor assembly with a new one.

    On-vehicle Inspection

    Curtain Shield Airbag Assembly(for Crewmax)
