Toyota Tundra Service Manual: Removal

REMOVAL

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (See page ).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

3. REMOVE ROOF HEADLINING ASSEMBLY

HINT:

Refer to the procedures up to "REMOVE ROOF HEADLINING ASSEMBLY" (for CrewMax) (see page ).

4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

(a) Disconnect the connector.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

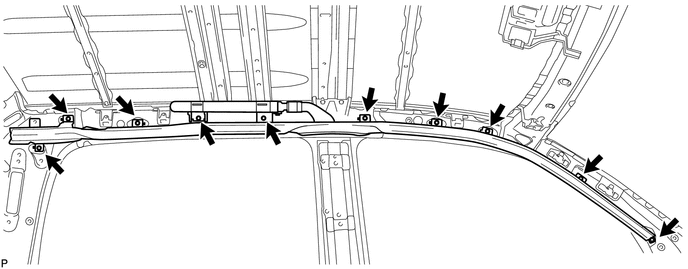

(b) Remove the 10 bolts and curtain shield airbag.

    On-vehicle Inspection

    Curtain Shield Airbag Assembly
