Toyota Tundra Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the LH side and RH side.
  • The procedure listed below is for the LH side.
  • A bolt without a torque specification is shown in the standard bolt chart (See page ).

PROCEDURE

1. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

(a) Apply MP grease to the sliding and rotating areas of the regulator motor.

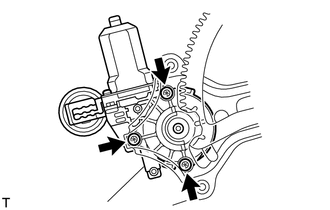

(b) Using a T25 ''TORX'' driver, install the motor with the 3 screws.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

HINT:

For a new rear window regulator, the installation position of the regulator will be set when the self-tapping screws are installed.

2. INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

(a) for Double Cab:

Install the rear door window regulator sub-assembly LH (See page ).

(b) for CrewMax:

Install the rear door window regulator sub-assembly LH (See page ).

3. INSTALL REAR DOOR GLASS SUB-ASSEMBLY LH

(a) for Double Cab:

Install the rear door glass sub-assembly LH (See page ).

(b) for CrewMax:

Install the rear door glass sub-assembly LH (See page ).

4. INSTALL REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY LH

(a) for Double Cab:

Install the rear door rear lower window frame sub-assembly LH (See page ).

(b) for CrewMax:

Install the rear door rear lower window frame sub-assembly LH (See page ).

5. INSTALL REAR DOOR GLASS RUN LH

(a) for Double Cab:

Install the rear door glass run LH (See page ).

(b) for CrewMax:

Install the rear door glass run LH (See page ).

6. INSTALL REAR DOOR SERVICE HOLE COVER LH

(a) for Double Cab:

Install the rear door service hole cover LH (See page ).

(b) for CrewMax:

Install the rear door service hole cover LH (See page ).

7. INSTALL REAR NO. 2 DOOR TRIM BRACKET

(a) for Double Cab:

Install the rear No. 2 door trim bracket (See page ).

(b) for CrewMax:

Install the rear No. 2 door trim bracket (See page ).

8. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

(a) for Double Cab:

Install the rear door trim board sub-assembly LH (See page ).

(b) for CrewMax:

Install the rear door trim board sub-assembly LH (See page ).

9. INSTALL REAR DOOR FRAME GARNISH LH

(a) for Double Cab:

Install the rear door frame garnish LH (See page ).

(b) for CrewMax:

Install the rear door frame garnish LH (See page ).

10. INSTALL REAR UPPER DOOR ARMREST BASE PANEL LH

(a) for Double Cab:

Install the rear upper door armrest base panel LH (See page ).

(b) for CrewMax:

Install the rear upper door armrest base panel LH (See page ).

11. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH

(a) for Double Cab:

Install the rear door inside handle bezel plug LH (See page ).

(b) for CrewMax:

Install the rear door inside handle bezel plug LH (See page ).

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).
