REMOVAL

CAUTION / NOTICE / HINT

NOTICE:

When replacing the trailer brake control switch, the stored gain value is reset.
Before replacing the trailer brake control switch, record the set gain value.

HINT:

After replacing the trailer brake control switch, the gain value is set to 5.0 (initial value).

PROCEDURE

1. REMOVE INSTRUMENT SIDE PANEL LH

2. REMOVE FRONT DOOR SCUFF PLATE LH

for CrewMax: Click here
for Double Cab: Click here

3. REMOVE COWL SIDE TRIM BOARD LH

4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

5. REMOVE NO. 2 SWITCH HOLE BASE

6. REMOVE TRAILER BRAKE CONTROL SWITCH

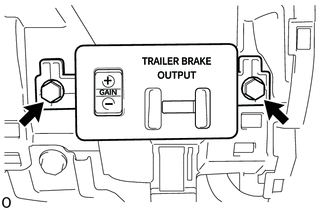

(a) Remove the 2 bolts and trailer brake control switch.

(b) Disconnect the connector.
