Toyota Tundra Service Manual: Components

COMPONENTS

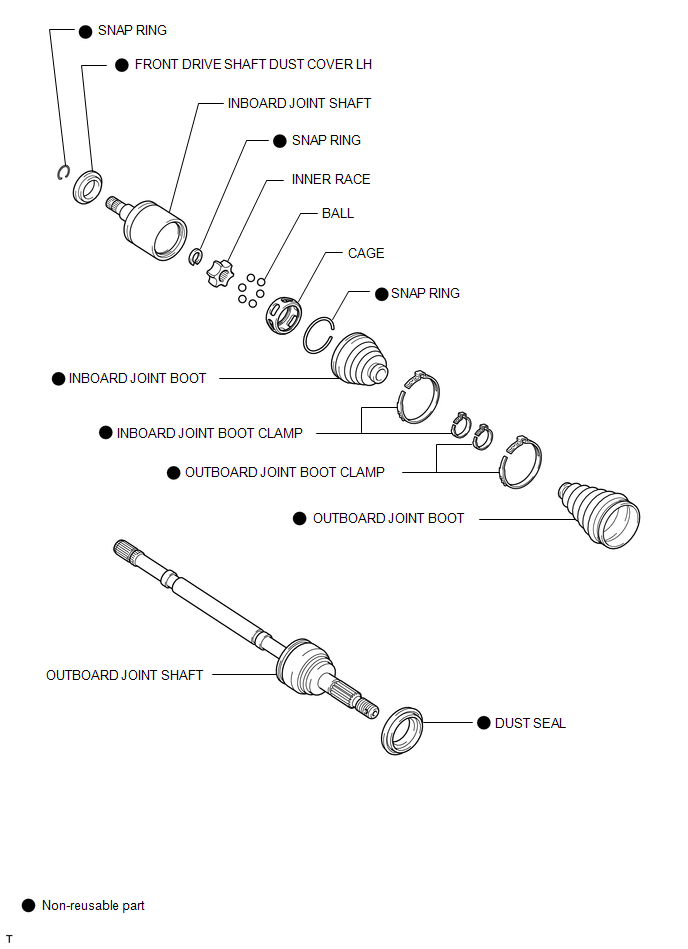

ILLUSTRATION

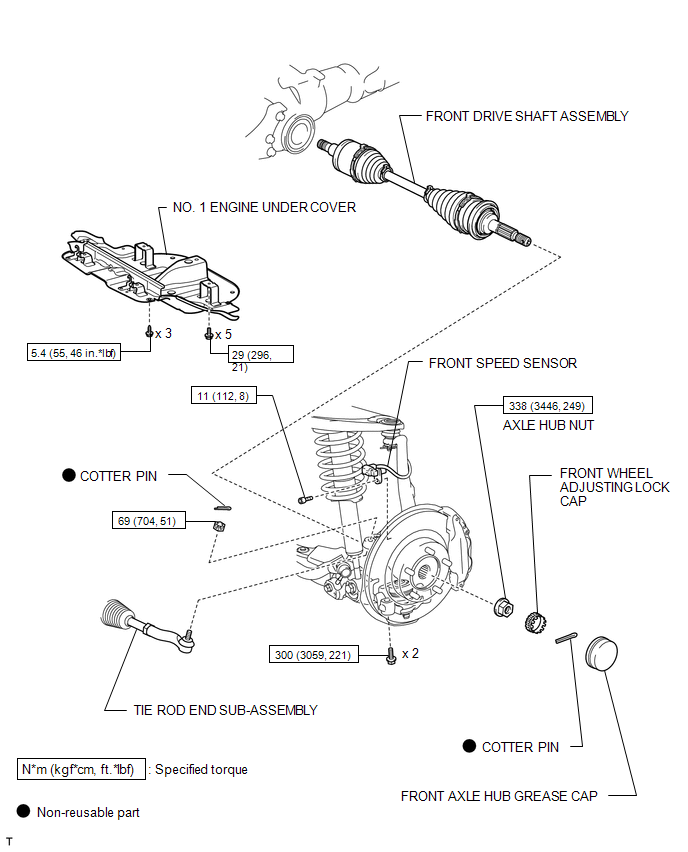

ILLUSTRATION

    Front Drive Shaft Assembly(for 4wd)

    Disassembly
