COMPONENTS

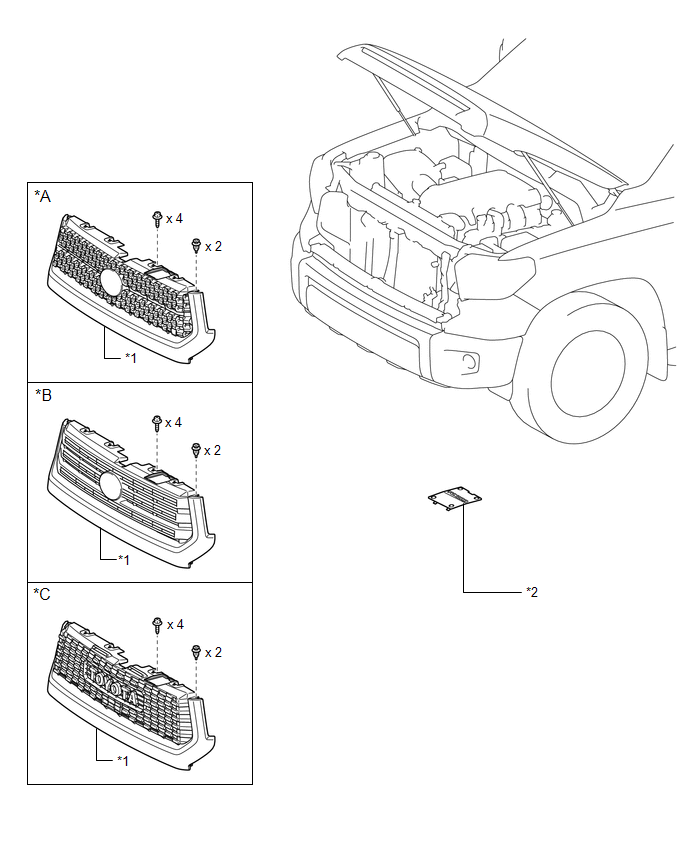

ILLUSTRATION

*A

for Type A

*B

for Type B

*C

for Type C

-

-

*1

RADIATOR GRILLE SUB-ASSEMBLY

*2

RADIATOR SIDE GRILLE LH

ILLUSTRATION

*A

for Type A

*B

w/ Toyota Safety Sence P

*1

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*2

MILLIMETER WAVE RADAR WIRE

*3

RADIATOR GRILLE GARNISH

*4

SPRING NUT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

ILLUSTRATION

*A

for Type B

*B

w/ Toyota Safety Sence P

*1

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*2

MILLIMETER WAVE RADAR WIRE

*3

RADIATOR GRILLE GARNISH

*4

SPRING NUT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

ILLUSTRATION

*A

for Type C

*B

w/ Toyota Safety Sence P

*1

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*2

MILLIMETER WAVE RADAR WIRE

*3

RADIATOR GRILLE GARNISH

*4

SPRING NUT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
