INSTALLATION

PROCEDURE

1. INSTALL SLIDING ROOF HOUSING SUB-ASSEMBLY

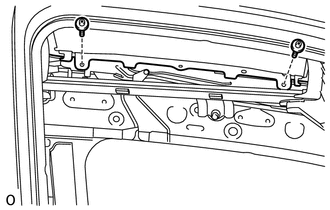

(a) Temporarily install the housing with the 10 bolts (vehicle body side) and 6 nuts.

(b) Tighten the 6 nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

(c) Tighten the 10 bolts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

(d) Connect the 4 sliding roof drain hoses.

NOTICE:

The clip must face toward the outside of the vehicle and also be above the lower surface of the sliding roof housing when installing the drain hoses.

2. INSTALL SLIDING ROOF WEATHERSTRIP

(a) Install the sliding roof weatherstrip as described below.

(1) Attach each corner of the weatherstrip so that each weatherstrip mark is aligned with the sliding roof glass' center mark. After attaching the entire weatherstrip, check that all weatherstrip marks are within the sliding roof glass' end marks.

(2) Make sure the weatherstrip's cutout is toward the rear side of the vehicle and centered.

(3) Make sure the weatherstrip is securely installed as shown in the illustration.

3. INSTALL SLIDING ROOF GLASS SUB-ASSEMBLY

(a) Using a T25 "TORX" driver, temporarily install the glass with the 4 screws.

(b) Perform a level check.

(1) Check the difference in the level between the roof panel and the upper surface of the weatherstrip labeled "a" when the sliding roof glass is fully closed.

Standard:

Area

Measurement

A - A

0 +/-1.5 mm (0 +/-0.0591 in.)

B - B

C - C

D - D

HINT:

"+" represents the condition that the glass is above the panel level. "-" represents the condition that the glass is below the panel level.

(2) Perform a gap check.

Check the gap between the roof panel and roof glass.

NOTICE:

The gap must be even all around.

(c) Tighten the 4 screws.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

4. CHECK FOR WATER LEAK

(a) After adjusting the sliding roof glass sub-assembly, check for water leak.

(b) If there are any leaks, readjust the sliding roof glass sub-assembly.

5. INSTALL SLIDING ROOF SIDE GARNISH LH

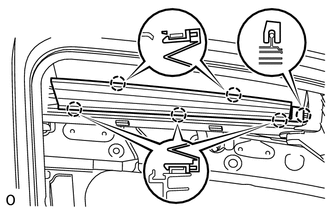

(a) Attach the 6 claws to install the sliding roof side garnish.

6. INSTALL SLIDING ROOF SIDE GARNISH RH

HINT:

Use the same procedures described for the LH side.

7. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

(a) Install the curtain shield airbag (See page ).

8. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH

HINT:

Use the same procedures described for the LH side.

9. INSTALL ROOF HEADLINING ASSEMBLY

(a) Install the roof headlining (See page ).

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

11. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light (See page ).
