Toyota Tundra Service Manual: On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. CHECK FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

(a) Perform a diagnostic system check (see page ).

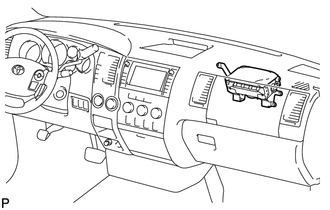

(b) With the front passenger airbag installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the instrument panel with a new one:

Cuts, minute cracks or marked discoloration on the instrument panel around the front passenger airbag.

2. CHECK FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

(a) Perform a diagnostic system check (see page ).

(b) With the front passenger airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front passenger airbag, instrument panel or instrument panel reinforcement with a new one:

  • Cuts, minute cracks or marked discoloration on the front passenger airbag.
  • Cracks or other damage to the connectors.
  • Deformation or cracks on the instrument panel or instrument panel reinforcement.

    CAUTION:

    For removal and installation procedures of the front passenger airbag, be sure to follow the correct procedure.

    Installation

    Removal
