Toyota Tundra Service Manual: Glass Breakage Sensor(for Column Shift Type)

Toyota Tundra Service Manual / Vehicle Interior / Theft Deterrent / Glass Breakage Sensor(for Column Shift Type)

Components

COMPONENTS

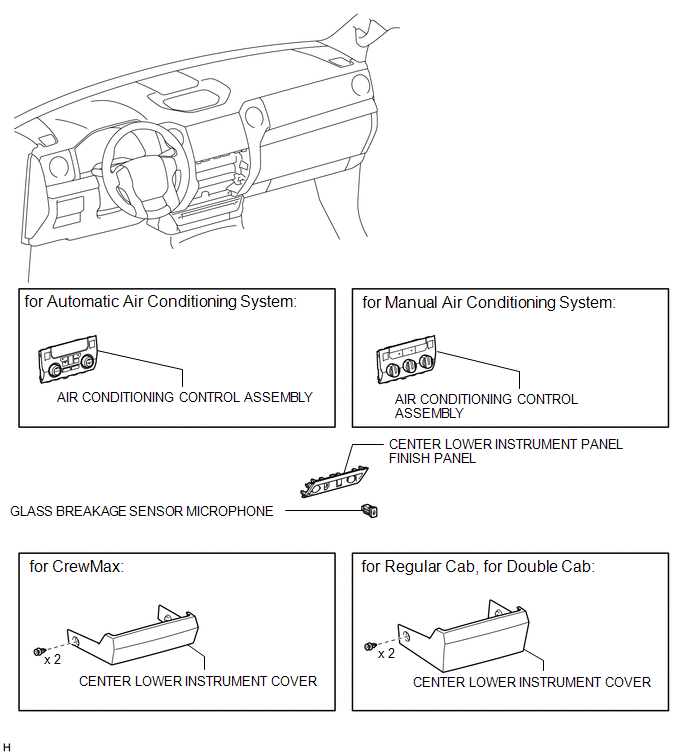

ILLUSTRATION

Installation

INSTALLATION

PROCEDURE

1. INSTALL GLASS BREAKAGE SENSOR MICROPHONE

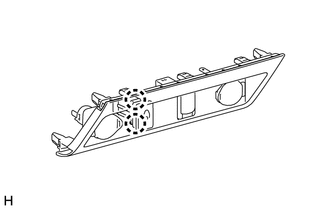

(a) Attach the 2 claws to install the glass breakage sensor microphone.

2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

3. INSTALL CENTER LOWER INSTRUMENT COVER

Removal

REMOVAL

PROCEDURE

1. REMOVE CENTER LOWER INSTRUMENT COVER

2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

3. REMOVE GLASS BREAKAGE SENSOR MICROPHONE

(a) Detach the 2 claws and remove the glass breakage sensor microphone.
