Toyota Tundra Service Manual: Glass Breakage Sensor(for Floor Shift Type)

Toyota Tundra Service Manual / Vehicle Interior / Theft Deterrent / Glass Breakage Sensor(for Floor Shift Type)

Components

COMPONENTS

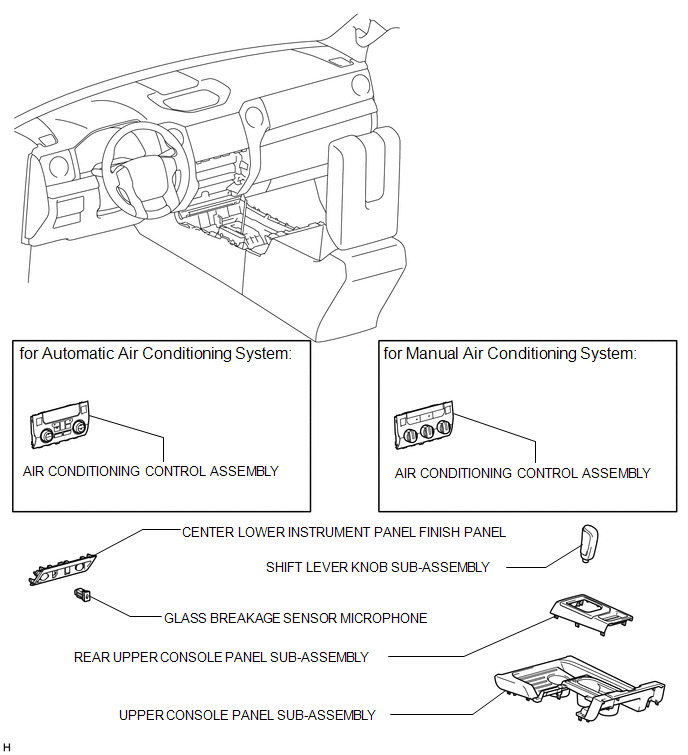

ILLUSTRATION

Installation

INSTALLATION

PROCEDURE

1. INSTALL GLASS BREAKAGE SENSOR MICROPHONE

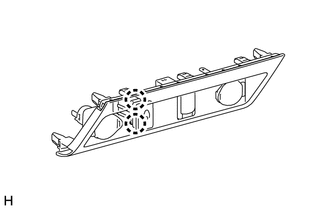

(a) Attach the 2 claws to install the glass breakage sensor microphone.

2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

4. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Removal

REMOVAL

PROCEDURE

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

2. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

4. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

5. REMOVE GLASS BREAKAGE SENSOR MICROPHONE

(a) Detach the 2 claws and remove the glass breakage sensor microphone.

    Glass Breakage Sensor(for Column Shift Type)

    Security Horn Assembly
