Toyota Tundra Service Manual: Washer Motor

Components

COMPONENTS

ILLUSTRATION

Inspection

INSPECTION

PROCEDURE

1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

HINT:

This check should be performed with the windshield washer motor and pump installed to the washer jar.

(a) Fill the washer jar with washer fluid.

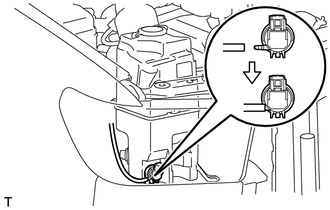

(b) Connect the battery's positive (+) lead to terminal 1 and the negative (-) lead to terminal 2 of the washer motor and pump.

(c) Check that washer fluid flows from the washer jar.

OK:

Washer fluid flows from washer jar.

If the result is not as specified, replace the washer motor and pump assembly.

Installation

INSTALLATION

PROCEDURE

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

(a) Install the windshield washer motor and pump to the packing of the washer jar.

2. FILL UP WASHER JAR ASSEMBLY WITH WASHER FLUID

(a) Connect the washer hose to the washer motor and pump, and fill the washer jar with washer fluid.

3. INSTALL WINDSHIELD WASHER JAR ASSEMBLY

(a) Connect the connector.

(b) Install the windshield washer jar with the clip and 3 bolts.

Torque:

3.5 N·m {36 kgf·cm, 31 in·lbf}

Removal

REMOVAL

PROCEDURE

1. REMOVE WINDSHIELD WASHER JAR ASSEMBLY

(a) Disconnect the connector.

(b) Remove the clip and 3 bolts. Then remove the washer jar.

2. DRAIN WASHER FLUID

(a) Remove the washer hose from the windshield washer motor and pump, and drain the washer fluid.

3. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

(a) Pull out the washer motor and pump from the packing of the washer jar to remove it.
